Informatics Practices 2016 CBSE [Delhi] Set IV

(a) Two doctors have connected their mobile phones to transfer a picture file of a person suffering from a skin disease. What type of network is formed? Which communication media out of Coaxial cable, Optical fiber, Bluetooth, Satellite link should be used to transfer the file? [2]

(b) State reason why Star topology requires more cable length than Bus topology. [2]

(c) “Open Source Software developers work for the good of community”. Is this statement true? Give reason. [2]

(d) What happens during ‘Domain Name Resolution’? [2]

(e) How is ‘Denial of service’ attack, a threat to Network security? [2]



(a) Identify the odd one out of the following statements. State reason for your choice. [1]
i. switch
ii. do while
iii. while
iv. for
(b) What is the difference between setVisible() and setEnabled() methods? [1]

(c) What is the difference between the following statements i) and ii). [1]
i. a = 5;
ii. if (a==5)
x = 3;

(d) Write the output in jtextField1 if depcode is 3. [1]
switch(depcode)
{
case 1 :
   allowance = 4000;
   break;
case 2 :
   allowance = 3200;
   break;
default :
   allowance = 1000;
}
jTextField1.setText(" "+allowance);


(e) Sandhya is creating a webpage. She is entering HTML code on her computer. In between, she keeps pressing ‘Refresh’ / ‘Reload’ button on her browser. What is the purpose? [2]


(f) What does ‘XML’ stand for? How is the purpose of HTML different from XML? [2]



(g) Write Java code (statements) to declare Y as an integer variable. Then, assign the value 30 to a variable Y. Increase the value of Y by 5 and store the increased value in Z. [2]



(a) What is MySQL? [1]

(b) Charvi is inserting "Sharma" in the "LastName" column of the "Emp" table but an error is being displayed. Write the correct SQL statement. [1]

INSERT INTO Emp(‘Sharma’) VALUES (Lastname) ;


(c)

FriendCode	Name	Hobbies
F101	Bijoy	Swimming
F102	Abhinav	Reading Books
F103	Jyotsna	Dancing



Now, Kunal wants to delete the ‘Hobbies’ column. Write the MySQL statement. [1]

(d)
Table: Sales

SCode	Name	City
	Aakriti	Mumbai
	Aman	Punjab
	Banit	Delhi
	Fauzia	Mumbai



SELECT * FROM Sales

WHERE City = ‘Chennai’

AND City = ‘Mumbai’;                       [1]

Rewrite the correct sentence if wrong or write statement is correct.

(e) (i) Name 2 Aggregate (Group) functions of SQL. [2]

(ii) Consider the table:

Table: Company

SID	SALES
S101	20000
S103	NULL
S104	10000
S105	15000



What output will be displayed by the following SQL statement?

SELECT AVG(SALES) From Company;

(f) Given below is the ‘Stu’ table:     [2]

RNO	NAME
1	Amit
2	Bhishm



The following statements are entered:

SET AUTOCOMMIT = 0;

INSERT INTO Stu VALUES(5,'Rahul');

COMMIT;

UPDATE Stu set name='Rahuliya' where Rno= 5;

SAVEPOINT A;

INSERT INTO Stu VALUES(6,'Cristina');

SAVEPOINT B;

INSERT into Stu values(7,'Fauzia');

SAVEPOINT C;

ROLLBACK TO B;

Now what will be the output of the following statement:

SELECT * FROM Stu;

(g) Consider the table ‘Hotel’ given below: [2]

Table: Hotel

EMPID	Category	Salary
E101	MANAGER	60000
E102	EXECUTIVE	65000
E103	CLERK	40000
E104	MANAGER	62000
E105	EXECUTIVE	50000
E106	CLERK	35000



Mr. Vinay wanted to display average salary of each Category. He entered the following SQL statement. Identify error(s) and Rewrite the correct SQL statement.

SELECT Category, Salary

FROM Hotel

GROUP BY Category;



(a) When is if‐else if statement preferred over switch statement? [1]
(b) What is the purpose of break statement? [1]

(c) What will be displayed in jTextField1 and jTextField2 after the following code is executed? [1]

int t;

int s;

s = 2;

t = (4*s++)/2;

jTextField1.setText(" "+t);

jTextField2.setText(" "+s);

(d) Write the contents of jTextField1, jTextField2, jTextField3 and jTextField4 when the following statements are executed:[2]

String x;

String str = "Java";

x = str.concat("study");

double a = 7.8765;

jTextField1.setText(x.length()+" ");

jTextField2.setText(x.toUpperCase());

jTextField3.setText(x.subString(2,5));

jTextField4.setText(Math.round(7.8765)+"");



(e) Rewrite the following code using WHILE​ loop: [2]
int sum = 0;

(f) The following code has error(s). Rewrite the correct code underlining all the corrections made:[2]
int x = 10;

int y = 50;
do;
{
x+5=x;
y-5=y;

(g) Vijay has developed a software for planning personal budget. A screenshot of the same is shown below: [3]

Total Income, Expenses of Bills (Water/Electricity), Groceries,Entertainment, other expenses and whether money is to be sent toHostel are entered by the user. Sum of Expenses, Grand Total ofExpenses and Savings are calculated and displayed by the program.
Write the code to do the following:

(i). When ‘CALCULATE’ button is clicked, Sum of Expenses, Total Expenses and Savings should be calculated and displayed in appropriate text fields.  [3]

• Sum of Expenses is calculated by adding expenses on Bills(Water/Electricity), Groceries, Entertainment and other expenses.
• Grand Total of Expenses is calculated according to the following criteria:
  If ‘Money to be sent to Hostel’ checkbox is selected, 3000.00 is to be added to the sum of expenses. If it is not selected, Grand Total of Expenses is the same as sum of expenses.
• Savings = Total Income – Grand Total of Expenses.

(ii) When ‘CLEAR’ button is clicked, all text fields and checkbox should be cleared. [1]

(iii) When ‘CLOSE’ button is clicked, the application should close. [1]

(a) Anita has created the following table with the name ‘Order’. [2]
Table: Order

Column Name	Constraint
OrderId	Primary Key
OrderDate	Not Null
OrderAmount
StoreId



One of the rows inserted is as follows:

OrderId	OrderDate	OrderAmount	StoreId
0101	2015-02-12	34000	$104



i. What is the data type of columns OrderId and OrderDate in the      table Order?
ii. Anita is now trying to insert the following row :

OrderId	OrderDate	OrderAmount	StoreId
0102	NULL	59000	$105



Will she be able to successfully insert it? Give reason.

(b) Write the output of the following SQL queries: [2]
(i) SELECT MID(‘BoardExamination’, 2, 4);
(ii) SELECT ROUND(67.246, 2);
(iii) SELECT INSTR(‘INFORMATIONFORM’, ‘FOR’);
(iv) SELECT DAYOFYEAR(‘2015-01-10’);

(c) Write commands in SQL for (i) to (iv) and output for (v) and (vi). [6]
Table: Store

(i) To display Name, Location, City, SalesAmount of stores in descending order of SalesAmount.

(ii) To display names of stores along with SalesAmount of those stores that have ‘fashion’ anywhere in their store names.

(iii) To display Stores names, Location and Date Opened of stores that were opened before 1^st March 2015.

(iv) To display total SalesAmount of each city along with city name.

(v) SELECT distinct city FROM store;

(vi) SELECT Name, length(name),left(name,3) FROM Store where NoOfEmployees< 3;

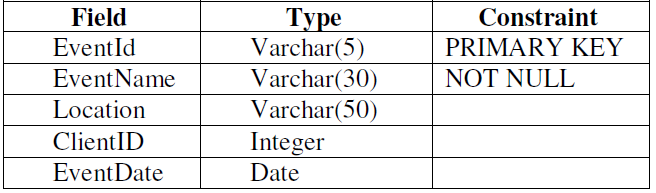

(a) Write SQL query to create a table ‘Event’ with the following structure: [2]

(b) Consider the table given below: [2]

(i) Which column is used to relate the two tables?
(ii) Is it possible to have a primary key and a foreign key both in one table? Justify your answer with the help of table given above.
(c) With reference to the above given tables, write commands in SQL for (i) and (ii) and output for (iii) : [6]
(i) To display CourseId,TeacherId, Name of Teacher, Phone Number of Teachers living in Delhi.
(ii) To display TeacherID, Names of Teachers, Subjects of all teachers with names of Teachers starting with ‘S’.
(iii) SELECT CourseId, Subject, TeacherId, Name, PhoneNumber FROM Faculty, Course WHERE Faculty.TeacherId = Course.TeacherId AND Fee >= 5000;

(a) “In e‐Business, customers should shop only when they trust the e‐store provider for payment methods”‐ Justify the statement [1]
(b) Which of the following statements is NOT true in e‐Governance? Rewrite the statement after correcting it. [2]
(i) Online applications and tracking of status of applications should be provided.

(ii) Citizens should not be required to submit documents in physical form.

(iii) On line Forms should be made tricky so that only well educated users can enter data.

(iv) Government should interact with citizens and enlighten them about different schemes through social media and web based platforms.

(c) Ms. Arora is creating a form for accepting Visa applications. Help her to choose most appropriate controls out of ListBox, ComboBox, TextField, TextArea, RadioButton, CheckBox, Label and Command Button for the following entries. [2]


S.No	Function
	To enter EMAIL ID
	To choose GENDER
	To choose NATIONALITY from countries given as options
	To enter REMARKS in the form of a paragraph about the purpose of visit.
