CBSE [All India]-Set-1-2006
To Access the full content, Please Purchase
-
Q1
Give any one difference between FAX and e-mail systems of communication. Marks:1View AnswerAnswer:
The basic difference between FAX and e-mail is that in case of FAX we get a hard copy of the message at the recipient’s terminal, while in case of an e-mail, we get a soft copy of the message at the recipient’s terminal. -
Q2
De Broglie wavelength associated with an electron accelerated through a potential difference V is l . What will be its wavelength when the accelerating potential is increased to 4 V? Marks:1View AnswerAnswer:
The de Broglie wavelength and potential difference is related to each other by the relation,
1/(V)1/2
Now according to given condition,
'/= (V/4V)1/2 = 1/2
' = /2
Hence, the new wavelength is half the original wavelength. -
Q3
Define the term electric dipole moment. Is it a scalar or a vector quantity? Marks:1View AnswerAnswer:
The electric dipole moment of an electric dipole is the product of either charge and separation between the two charges. It is a vector quantity in the direction of the dipole axis from –q to +q. Mathematically it can be represented by equation,
p = q
2a
-
Q4
The variation of potential difference V with length l in case of two potentiometers P and Q is as shown. Which one of these two will you prefer for comparing emfs of two primary cells.
Marks:1View AnswerAnswer:
Here potentiometer Q is preferred because it has a smaller potential gradient. (k=V/l) -
Q5
Steel is preferred for making permanent magnets whereas soft iron is preferred for making electromagnets. Give one reason. Marks:1View AnswerAnswer:
Steel is preferred for making permanent magnets because of its high coercivity. Soft iron is used for making electromagnets because of its high permeability and low hysteresis loss. -
Q6
Two capacitors of capacitance of 6
Fand 12 Fare connected in series with a battery. The voltage across the 6 F capacitor is 2 V. Compute the total battery voltage.Marks:2View AnswerAnswer:
Since both the capacitors are connected in series,
Charge on 6
F capacitor = charge on 12 F capacitor. Let V be the potential difference across 12F capacitor.
6 2 = 12 V [
Q = CV]V = [(6
2)/12] = 1 volt
Hence the battery voltage = (2 + 1)V = 3V. -
Q7
Sketch a graph between frequency of incident radiations and stopping potential for a given photosensitive material. What information can be obtained from the value of the intercept on the potential axis?
A source of light of frequency greater than the threshold frequency is placed at a distance of 1m from the cathode of a photo-cell. The stopping potential is found to be V. If the distance of the light source from the cathode is reduced, explain giving reasons, what change will you observe in the
(i)photoelectric current,
(ii)stopping potential Marks:2View AnswerAnswer:

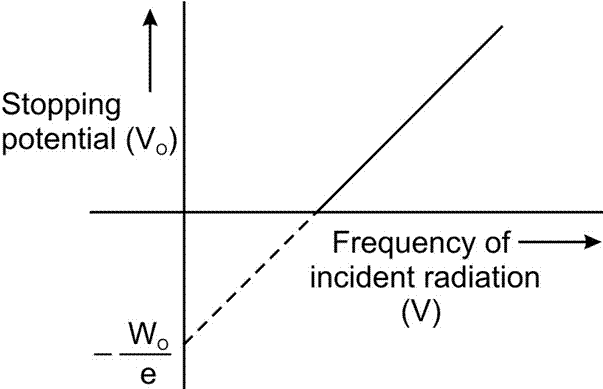

Graph between frequency of incident radiation and stopping potential for a given photosensitive surface is given below:
The intercept on the potential axis = - Wo/e From the above equation it follows that, Work function, W0 = e x Magnitude of intercept on the potential axis. If the distance of the light source from the cathode is reduced, then (i) The photoelectric current increases because the intensity of incident radiation increases. (ii) The stopping potential V remains the same because it is independent of the intensity. -
Q8
You are given ‘n’ resistors, each of resistance ‘r’. These are first connected to get minimum possible resistance. In the second case, these are again connected differently to get maximum possible resistance. Compute the ratio between the minimum and maximum values of resistance so obtained. Marks:2View AnswerAnswer:
First of all connecting n resistances in parallel combination,
1/(Rmin) = 1/(r) + 1/(r)........(n resistance) = n/r
or 1/(Rmin) = r/n
Now connect the n-resistances in series, Rmax= r + r ..........(n resistance) = nr
We have to find out, (Rmin)/(Rmax) = [(r/n)]/[(nr)] = 1/n2 = 1 : n2
-
Q9
A parallel plate capacitor with air between the plates has a capacitance of 8 pF. The separation between the plates is now reduced by half and the space between them is filled with a medium of dielectric constant 5. Calculate the value of capacitance of the capacitor in the second case. Marks:2View AnswerAnswer:
Initial capacitance of the capacitor is given by,
Co =
oA/d = 8 pf
Now final capacitance of the capacitor, according to the given condition is given by,
C = [(KoA)/(d/2)] = 2KCo = 258 = 80pf -
Q10
Draw a labeled ray diagram to show the image formation in a refracting type astronomical telescope. Why should the diameter of the objective of a telescope be large? Marks:2View AnswerAnswer:

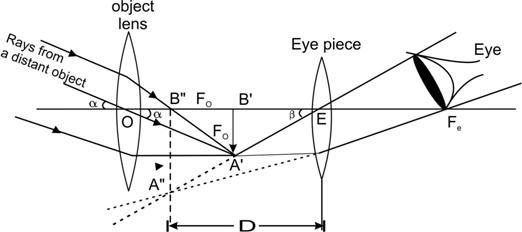

The ray diagram for the image formation in a refracting type astronomical telescope is given below,
If the diameter of the objective is large then the resolving power of the telescope increases.
